Sodium have great advantage for vehicle starter battery application:
1. Ultra-wide temperature range: Sodium-ion batteries can start vehicles in extremely cold weather at -40℃, and can also be used in high-temperature environments up to 80℃. The ultra-wide operating temperature range enables the battery to adapt to harsher environments.
2. High discharge rate: Sodium ion battery support 10C discharge rate even at -40℃ super cold temperature. This point make it wonderful to work as starter battery. Specially at winter cold temperature area.
3. High safety: Via testing, sodium-ion batteries are non-flammable under various extreme conditions, and their safety performance is superior to that of lithium batteries.
4. Long cycle life: Sodium-ion batteries have a long cycle life, and as starter batteries, they can last as long as the vehicle itself, eliminating the need for replacement like lead-acid batteries.
5. Can start vehicle at 0V, easy for maintenance: Sodium-ion batteries can still start a car even when at zero voltage, and after charging, they can continue to be used without affecting their lifespan, making them easier to maintain than lithium-ion batteries.
6. Low cost: Sodium is abundant and inexpensive, which is conducive to reducing battery costs after its widespread use in the market.
7. Environmentally friendly: Sodium-ion batteries do not contain harmful substances and are environmentally friendly.
Below is the comparison of sodium-ion battery, lead acid battery and lifepo4 battery.
| Sodium-ion batteries | Lead acid batteries | LiFePo4 batteries | |
| Model | 12V30Ah | 12V30Ah | 12V30Ah |
| Temperature rage | -40℃~80℃ | 0℃-65℃( capacity high attenuation at low temperature) | -20℃~65℃ |
| Charging performance | support 3C high-current fast charging, taking about 20 minutes to fully charge | only can be charged slowly with a small current. It takes 5.5 hours to charge at 10A | can charge up to 1C-2C, and takes about 40 minutes to fully charge |
| Discharging performance | Continuous discharge rate of 10C or higher | discharge rate 3-5C | discharge rate 3-5C |
| Peak discharge：400A@3S(-40℃) | only can be used when the required power >50%, and the performance degradation is significant, | The discharge performance decreases significantly at low temperatures, can not discharge with high current when temperature below -20℃ | |
| BMS | with protections against overcharge, overdischarge, overcurrent, overtemperature and short circuit protection |
No | with protections against overcharge, overdischarge, overcurrent, overtemperature and short circuit protection |
| Cycle life | 4000 cycles | 500 cycles | 3000 cycles |
| Weight | 5.5kg | 12.5kg | 4.5kg |
| Dimension | 约244*176*190mm | 约260*180*200mm | 约260*165*210mm |
| environment protection |
Does not contain any heavy metals |
Contain heavy metals |
Does not contain any heavy metals |
The models aviable：
250CCA 12V10Ah for motorcycle
460CCA 12V20Ah for for motorcycle and car
600CCA 12V30Ah for car

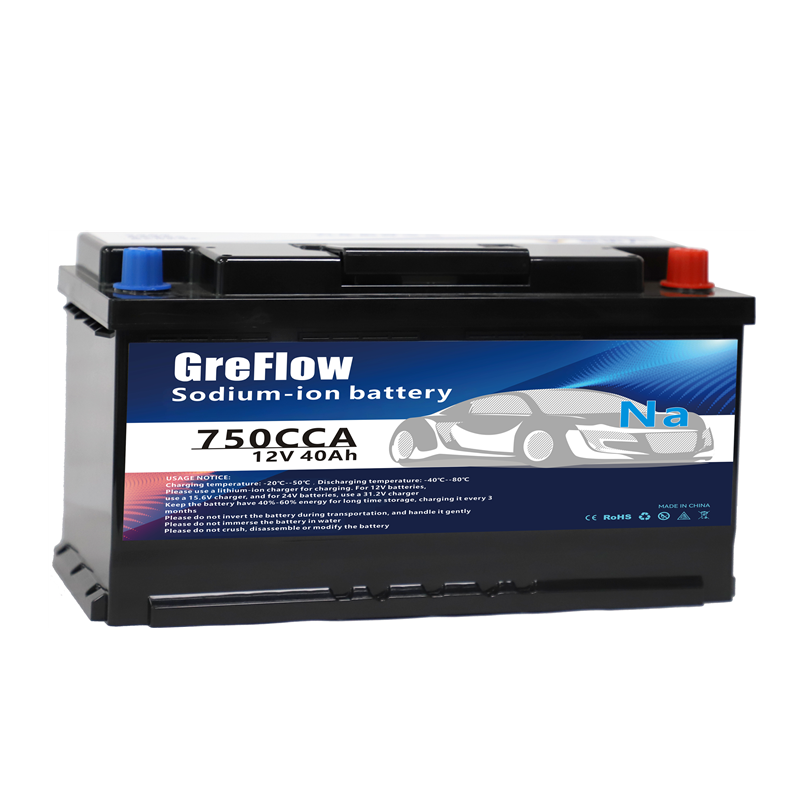

750CCA 12V40Ah for car
900CCA 12V50Ah for car
400CCA 24V20Ah for truck
750CCA 24V30Ah for truck
800CCA 24V40Ah for truck
