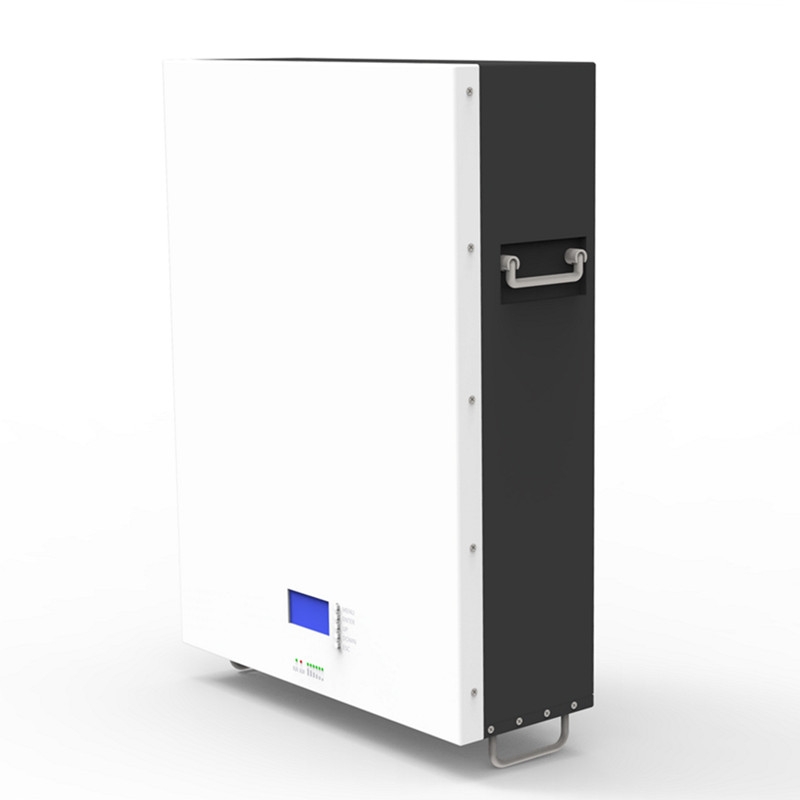

The Features of our Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah
1. We have 48V 50Ah, 48V 100Ah, 48V 150Ah, 48V 200Ah four models wall mounted battery for solar energy system.
2. it can be connection parallels for different applications.
3. support CAN, RS484 commnucation protocol, can custom BMS according to your CAN, RS485 protocol.
4. Compitable with most of Inverters brand, please let us know your inverter brand to confirm first.
5. apply for REPT Grade A cell, its cycle life can up to 5000 times left 80% capacity
6. We have confidence of 10-20 years usage. and promise 5 years warranty.
The Applications of Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah
1. for Solar Power system
2. for water heater and other household appliances
3. for back up energy storage system
Basic specifications of Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah
Power: 10KW
Battery voltage: 51.2V 16S
Capacity: 200Ah
Battery pack: 16S2P
Installation method: wall mounted
Communication method: RS485, CAN BUS
Certification: MSDS, UN38.3, CE, RoHS
Battery Pack specifications of Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Combination method |
16S2P |
|
|
|
2 |
Rated Capacity |
Typical |
200Ah |
Standard discharge after Standard charge（package) |
|
|
|
Minimum |
196Ah |
|
|
3 |
Factory Voltage |
51V-53V(40-60%) |
Mean Operation Voltage |
|
|
4 |
Voltage at end of |
40-44V |
Discharge Cut-off Voltage |
|
|
|
Discharge |
|
|
|
|
5 |
Charging Voltage |
56-58V |
|
|
|
6 |
Internal Impedance |
≤60mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
|
|
|
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
|
|
7 |
Standard charge |
Constant Current: 40A |
Charge time : Approx 6 h |
|
|
|
|
Constant Voltage see No.5 |
|
|
|
|
|
0.02CA cut-off |
|
|
|
|
Limiting current |
No |
|
|
|
8 |
Standard discharge |
Constant current：40A |
|
|
|
|
|
end voltage see NO.4 |
|
|
|
9 |
Maximum Continuous Charge Current |
100A |
T≥10ºC |
|
|
10 |
Maximum Continuous Discharge Current |
100A |
T≥10ºC |
|
|
11 |
Operation Temperature Range |
Charge: 0~45℃ |
60±25%R.H. |
|
|
|
|
Discharge: -20~55℃ |
|
|
|
12 |
Storage Temperature Range |
Less than 12 months : -10~35℃ |
60±25%R.H. |
|
|
|
|
less than 3 months: -10~45℃ |
|
|
|
|
|
Less than 7 day : -20~65℃ |
|
|
|
13 |
Dimensions |
680*485*180 (220)mm |
Include Bracket |
|
|
14 |
Weight |
Approx ：107kg |
|
|
Cell specifications of Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
100Ah |
Standard discharge（0.2C5A) after Standard charge |
|
|
Minimum |
100Ah |
||
|
2 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
|
3 |
Internal Impedance |
≤0.65 mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
||||
|
4 |
Dimension |
Thickness:Max 48.5mm |
Initial Dimension |
|
|
Width：Max 174.5mm |
||||
|
Height：Max 121.5mm |
||||
|
5 |
Weight |
2.3kg |
APPROX |
|
|
6 |
Standard charge |
Constant Current 0.33C5A |
Charge time : Approx3.5h |
|
|
Constant Voltage 3.65V |
||||
|
0.02C5A cut-off |
||||
|
7 |
Rapid Charge |
Constant Current 1C5A |
Charge time : Approx1.5h@≧10℃ |
|
|
Constant Voltage 3.65V |
||||
|
0.01C5A cut-off |
||||
|
8 |
Standard discharge |
Constant current 0.33C5A |
16.5A |
|
|
end voltage 2.5 V |
||||
|
9 |
Maximum discharge current |
Constant current：2C5A |
100A@≧0℃ |
|
|
end voltage：2.5 V |
||||
|
10 |
Volumetric specific energy |
295 WH/L |
APPROX |
|
|
11 |
Gravimetric specific energy |
139WH/KG |
APPROX |
|
BMS function introduction of Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah
1) The BMS is designed for 15/16 series lithium battery.
2) The BMS have all functions which are
Overcharge detection function
Over discharge detection function
Over current detection function
Short detection function
Temperature detection function
Balance function
Communicate function
Alarm function
Total capacity function
Storage history function
BMS Protect Parameters of Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah
|
Items |
Details |
Standard |
|
Cell overcharge protection |
Overcharge detection voltage |
3.65±0.025V |
|
Overcharge detection delay time |
Typical:1.0s |
|
|
Overcharge release voltage |
3.38±0.02V |
|
|
Cell over-discharge protection |
Over-discharge detection voltage |
2.5±0.02V |
|
Over-discharge detection delay time |
Typical:1.0s |
|
|
Over-discharge release voltage |
2.9±0.02V or charge release |
|
|
Over-current protection |
discharge Over-current protection current1 |
130±10A |
|
discharge Over-current detection delay time 1 |
1S |
|
|
discharge Over-current protection current 2 |
150±10A |
|
|
discharge Over-current detection delay time 2 |
≤100m±50ms |
|
|
Charge OC protection current |
130±10A |
|
|
Short protection |
Short protection current |
350±10A |
|
Protection condition |
Load short |
|
|
Detection delay time |
≤300us |
|
|
Protection release condition |
Charging release |
|
|
Temperature(T) protection |
Charge high T protection |
55±3℃ |
|
Charge high T recover |
50±5℃ |
|
|
Discharge high T protection |
65±5℃ |
|
|
Discharge high T recover |
60±5℃ |
|
|
Charge low T protection |
-5±5℃ |
|
|
Charge low T recover |
0±5℃ |
|
|
Discharge low T protection |
-20±5℃ |
|
|
Discharge low T recover |
-15±5℃ |
|
|
Balance |
Balance threshold voltage |
3.45V |
|
Communication |
It has RS232 /RS485 and CAN BUS standard communication interface, it can real-time monitoring the capacity of battery bank, the voltage, current, environment temperature, and charging/discharging current. Communication protocol content can be written according to your inverter protocol. |
|
|
Alarm |
It has over-temperature, over charge, under-voltage, over-current, short circuit alarm |
|
It support connection mode via RS485 Parallel Communication
While in RS485 parallel communication, dial-up addresses of battery module are 1,2,3,4……14,15; By this method, we can be allowed to read each data depending on battery module. Any battery other than address 0 can be connected to the host computer; FF polling mode used as consulting mode.
Accessories included of Solar Energy Storage 10KW Power Wall LiFePo4 battery 48v 200ah:
Export dangerous package carton
Set of 2m 35mm2 output line
1.6m inverter communication line
1m parallel connection line
One manual
Excluding current limiting module
