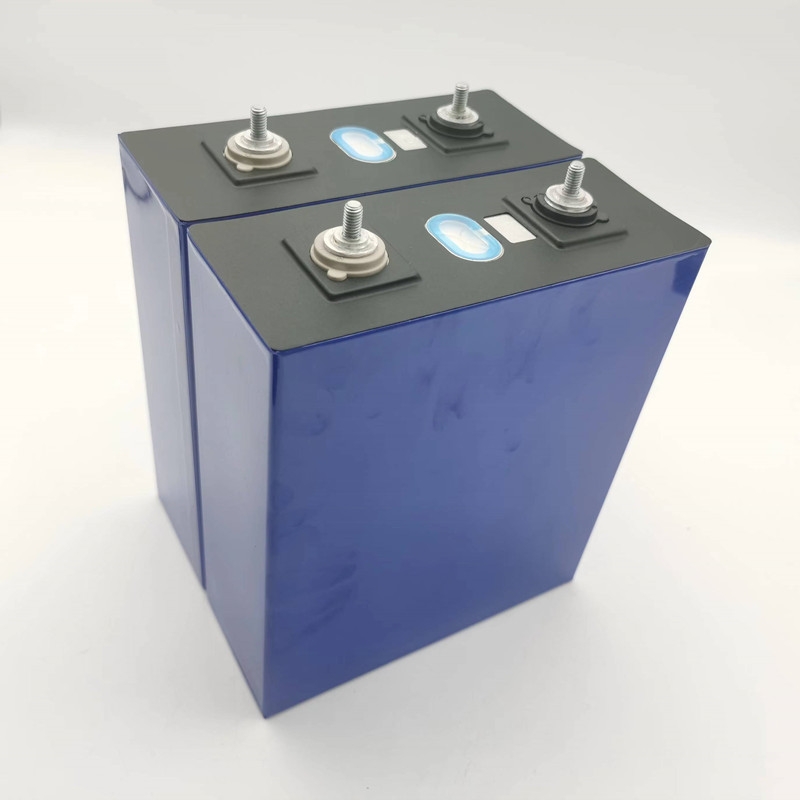

LiFePo4 271Ah 3.2V CATL LF271Ah Prismatic cell

Lithium Prismatic cell CATL LF271Ah 3.2v 271Ah LiFePo4 Prismatic Battery

Warranty:5YEARS
Anode Material:LFP
Chargeable:Yes
Application:Electric Folklifts, Electric vehicles, Solar Energy Storage Systems, Uninterruptible Power Supplies
Battery Size:Prismatic Cell
Brand Name:CATL
Model Number:3.2V 271Ah
Weight:5.5kg
The charging ratio:1C
The discharge rate:1C
Cycle Life:4000 times
Continuous current:1C
Peak Current:3C
Size:72*174*208mm


    CATL LF271Ah 3.2v 271Ah Lithium Iron Phosphate Battery Lifepo4 Cells
    CATL 271Ah Battery LiFePo4 Prismatic Lithium Iron Phsphate Battery For Solar

    Product Descriptions of CATL 271Ah Battery LiFePo4:


                 Model Name
    Prismatic 3.2V Lifepo4 CATL 271Ah Home Energy Storage Battery











    General
    Specification
    Nominal capacity
    271Ah
    Nominal voltage
    3.2V
    Charge cut off voltage
    3.65V
    Discharge cut off voltage
    2.5V
    AC Impedance Resistance
    ≤0.25mΩ
    Max Charge Current
    1C
    Max Discharge Current
    1C for continous,3C for 10S
    Cycle Life
    ≥4000 cycles
    Charging Temperature
    0℃~60℃
    Discharging Temperature
    -30℃~60℃


    Dimension and Weight
    Dimension
    173*57*207±2mm
    Net Weight of cell
    5.4kg±200g

    Application
    ESS,Solar and wind power system,RV,Camping car,Yacht,boat,caravan,Golf cart,Forklift, EV,etc.

    1 This is CATL 3.2V 271Ah, Brand new cells. with QR code.
    2 One battery will come with 1pcs bus bar and 2pcs nuts.
    3 The busbars size:90*20*2mm(cooper plated with nickel) Screw size:M6.
    4 We will test all the battery Voltage ,Internal resistance and capacity before delivery.
    Package
    We usually package it with four pcs cells with full foam.
    We can choose Sea,UPS and Air transportation as customer‘s demand.
