Specification
|
Model Number |

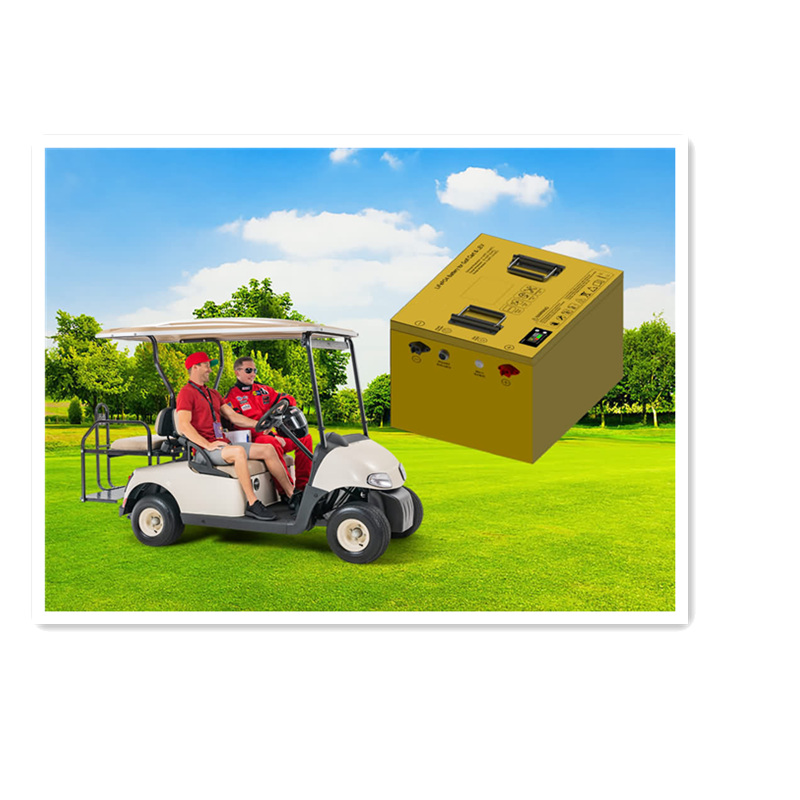

36V lithium iron phosphate battery pack |
|
Place of Origin |
China Guangdong |
|
Norminal voltage |
38.4V |
|
Norminal capacity |
120Ah |
|
Life cycle |
3500 times typical at 0.5C discharge 25℃ |
|
Stored energy |
4.6Kwh |
|
Self-discharge rate |
≤3% /month |
|
Weight |
45kg |
|
Recom.charging current |
≤60A |
|
Recom.charging current |
120A |
|
Max continuous discharging current |
240A |
|
Max discharging current (15 seconds) |
400A |
|
Peak discharging current |
600A |
|
Charger CC/CV |
43.8V |
|
Storage Type |
Golf cart electric sightseeing four-wheel patrol car low-speed car |
|
Working temperature |
-20~60 ℃ |
|
Storage temperature |
-10-35 ℃ |
|
Charge Temp. |
0-50 ℃ |
|
Disharge Temp. |
-20-60 ℃ |
|
Protection function |
Overcharge,overdischarge,over current,short curcuit protection |
|
Casing material |
Cold rolled steel with powder coated |
|
Color |
Yellow or Customize |
|
Dimension |
L339*W266*H260 mm |
|
IP Rate(waterproof) |
IP65 |
|
|
|
