48V 100Ah 51.2V 100Ah 5Kwh OEM Power Wall Battery for Energy Storage System
can be OEM production with your model and LOGO
.png)
can be OEM production with your model and LOGO
Descriptions of WP-Box5E 48V 51.2V 100Ah 5Kwh Power Wall Battery for Energy Storage System
Technical specification
| Battery Type | LiFePo4 (Lithium Iron Phosphate Battery) |
| Norminal Voltage (V) | 51.2V |
| Norminal Energy (KWh) | 5.12KWH |
| Design Capacity | 100Ah |
| Design Life | 15 Years |
Product Size
| Size | 650*450*170mm |
| Weight | 51KG |
Technical Parameters
| Cycle life | > 6000 times 80% DOD |
| Operating Voltage Range | 40V- 58.4V |
| Charging Voltage | DC 58.4V |
| Charging/Discharging Current (A) | Same Port 100A |
| Internal Resistance | <30mΩ |
BMS Parameters
| Self-Consumption | <2W |
| Rated Voltage | 51.2V |
| Balance Current | 30-65 (mA) |
| Communication Method | CAN / RS485 / RS232 |
| Information Storage | 500 Strip |
| Charging limiting Current | can be set through upper computer |
Ambient Temperature
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | 10°C ~ 50°C |
| Humidity | 15% ~ 75% |
Warranty
| Warranty time | 5 Years |
The Features of WP-Box5E 48V 51.2V 100Ah 5Kwh Power Wall Battery
1. Smart. Each module is equipped with an independent BMS.
2. Easy installation. design simple bracket, just plug & play.
3. Safe. Apply for Lithium iron phosphate battery cell, no possibility to get fire.
4. Certifications. MSDS and UN38.3, CE and IEC in applying.
5. Modular. Modular expansion, support 8pcs connection in paralles.
6. Longer lifetime. 6000 cycles, 15 years design life.

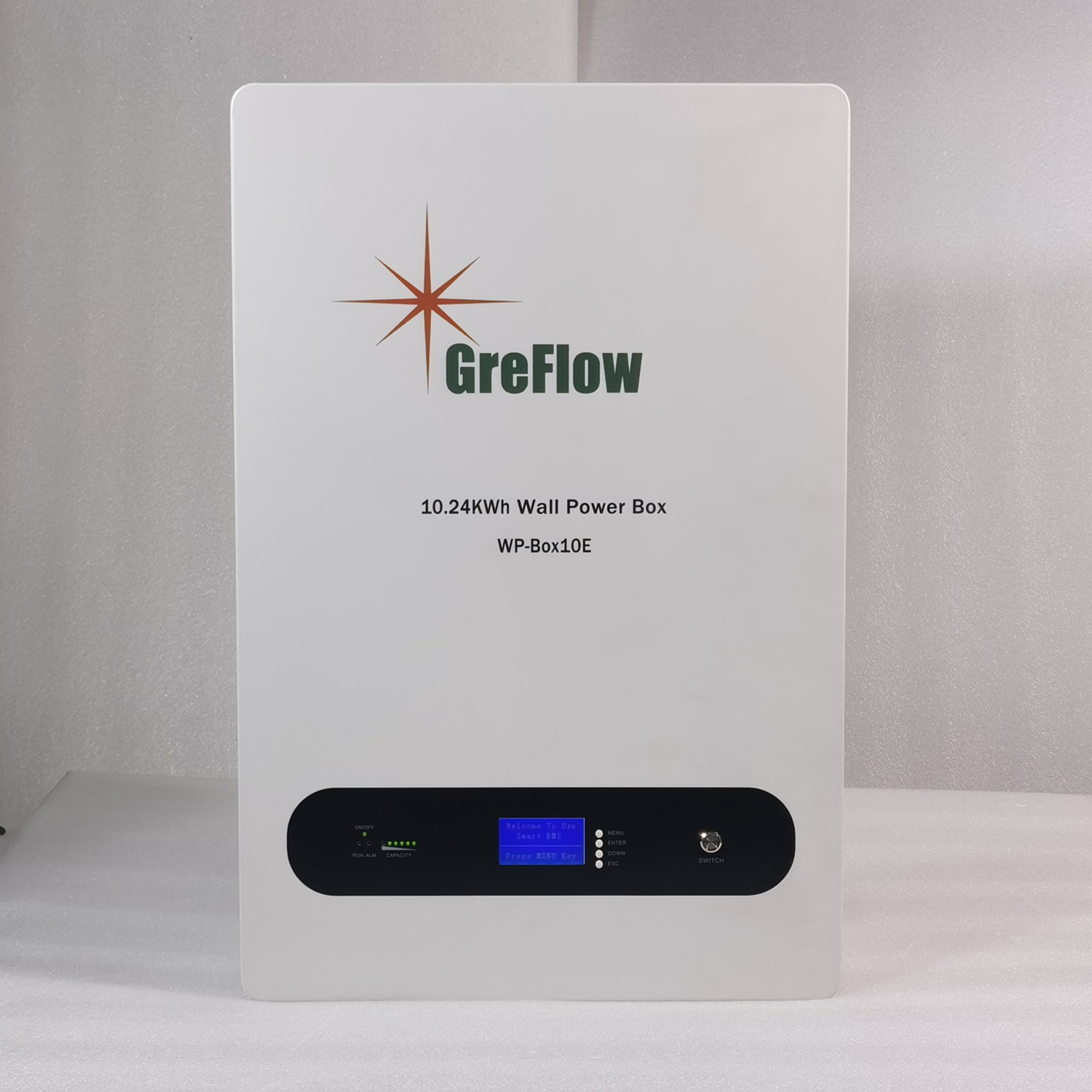

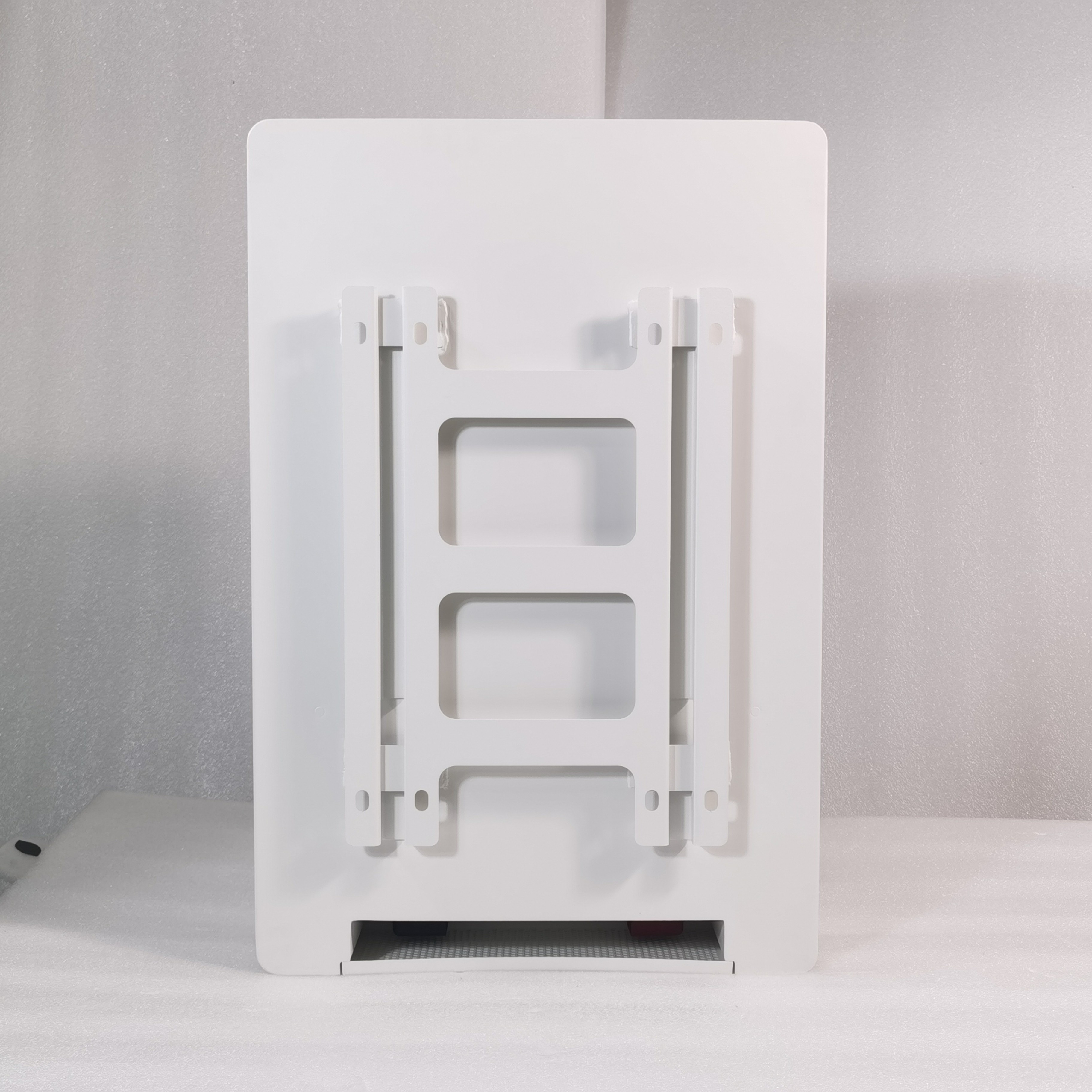

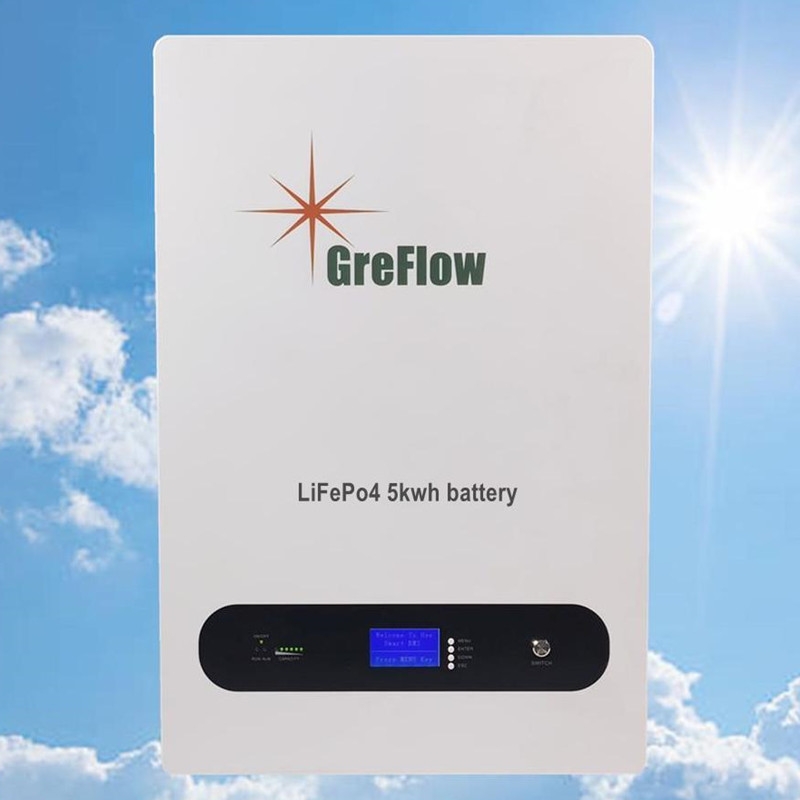

Images of Product:

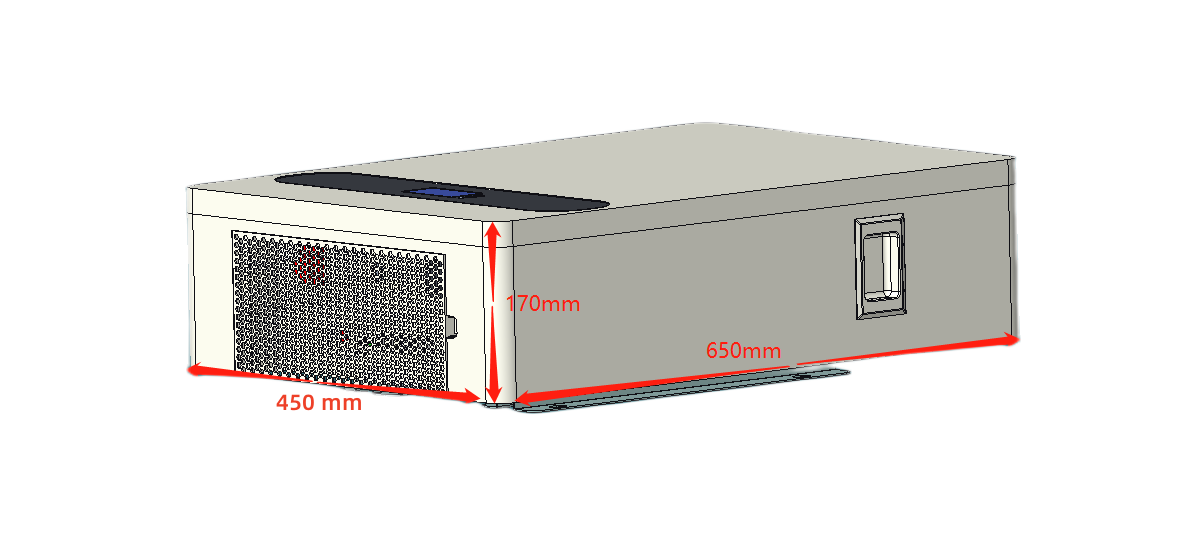

Product Size:

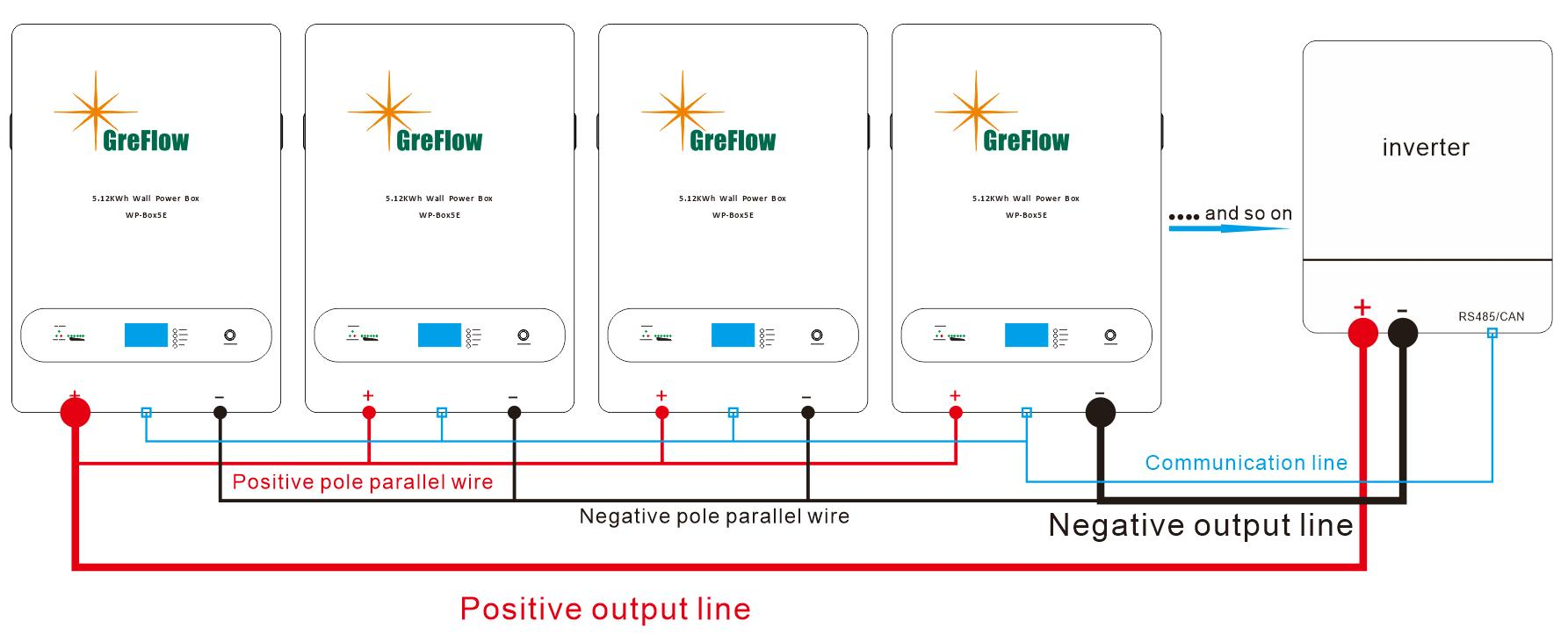

Paralles Connection of Batteries
Connect the positive pole with positive pole in parallel, and the negative pole with negative pole in parallel, as shown in the figure below.

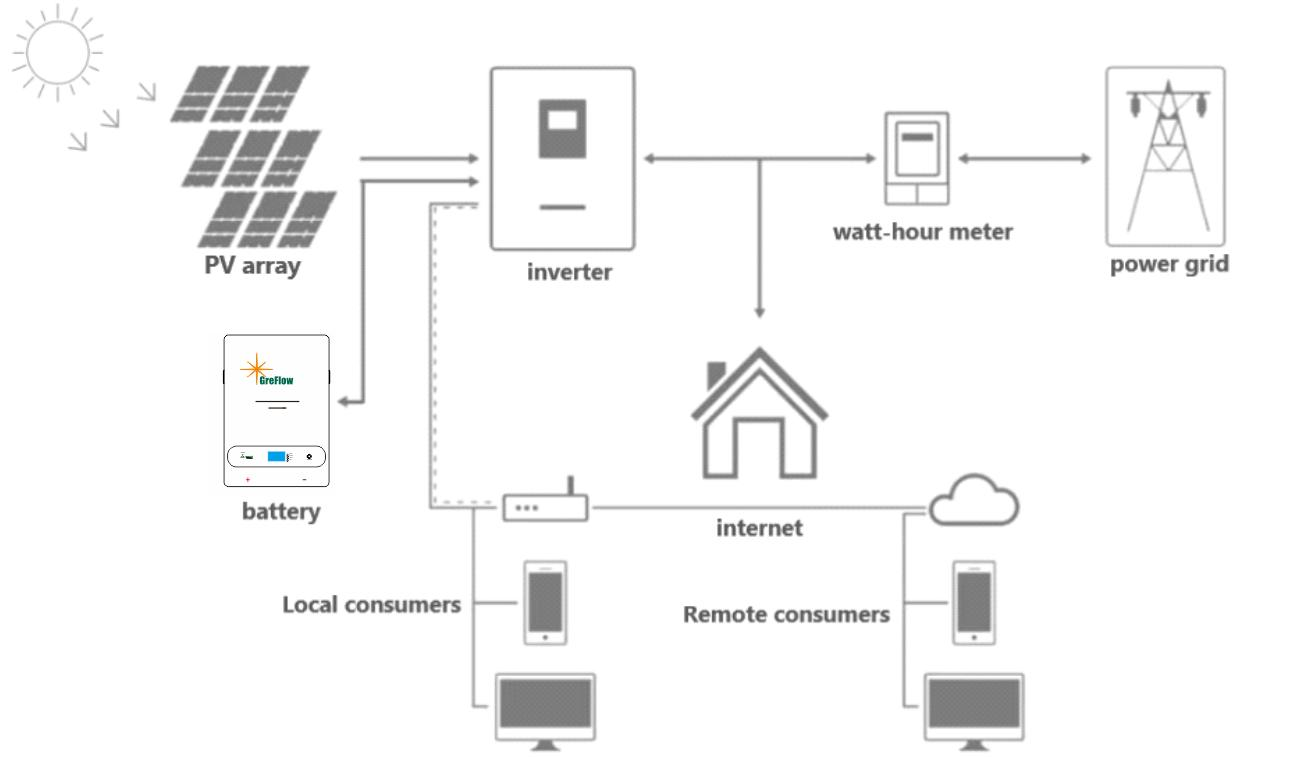

Solution Diagram
Compatible with these Inverter brands, and support communication protocols rewriting.
What is a solar battery and how does it work?
Solar panels make more electricity during the middle of the day than they do at any other time.
The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won’t need.
Solar batteries are able to store that extra solar energy so you can use it later on.
Solar powerwall batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren’t producing electricity.
What’s great about installing a solar powerwall battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there’s a power outage.
Features of LiFePO4 Battery compare with Lead acid Batteries:
Longer Cycle Life: Offers a significant longer cycle life and longer float/calendar life than lead acid batteries helping to minimize replacement cost and reduce total cost of ownership.
Higher Power:Delivers twice the power of lead acid batteries, even high discharge rate, while maintaining high energy capacity.
BMS Protection: Under/Over voltage and current protection ensuring safe and efficient operation.
Charging: Designed to work with AGM chargers.
Safety: Advanced LiFePO4 cell design includes various safeguards including high temp thermal fuse, flame retardant additive and pressure relief valves.
Increased Flexibility: Battery Specialist LiFePO4 batteries are a "drop-in replacement" of lead acid batteries.
More details please find on user manual
